Spout Pouch Filling Machine
In the production lines of many industries such as food, daily chemicals, and medicine, an efficient packaging device is crucial. Today, we'd like to solemnly introduce our small spout pouch filling and capping all-in-one machine! This Small pouch packaging machine is specially customized for enterprises with small production scales or requirements for space.
Parameter of the small spout pouch filling machine
|
Model |
CF-SPP-MP |
CF-SPP-P |
CF-SPP-RP |
|
Filling Range |
50g to 5kg |
50g to 280g |
50g to 5kg |
|
Capacity |
20~35 bags/min |
20~35 bags/min |
20~35 bags/min |
|
Filling Precision |
±0.5% |
±0.5% |
±0.5% |
|
Supply voltage |
AC220V/50Hz |
AC220V/50Hz |
AC220V/50Hz |
|
Power |
≤2 KW |
≤2 KW |
≤3 KW |
|
Operating pressure |
0.5—0.8Mpa |
0.5—0.8Mpa |
0.5—0.8Mpa |
|
Material entrance pressure |
0.3-0.35Mpa |
0.3-0.35Mpa |
0.3-0.35Mpa |
|
Air consumption |
0.5 m3/min |
0.5 m3/min |
0.5 m3/min |
|
Size of machine |
0.8mx0.6mx0.7m |
0.8mx0.6mx0.7m |
0.8mx0.6mx0.7m |
|
Weight of machine |
60kg |
70kg |
70kg |

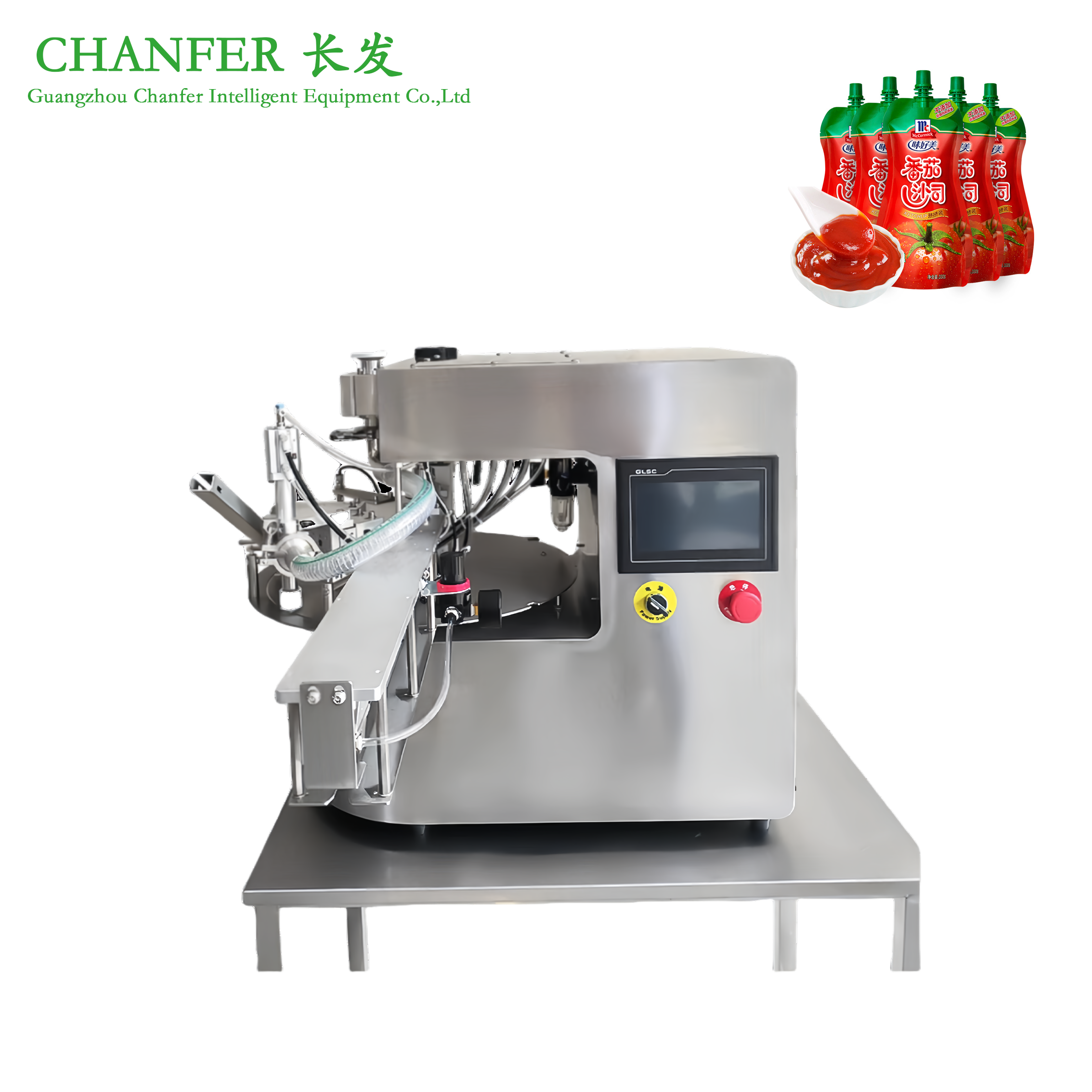

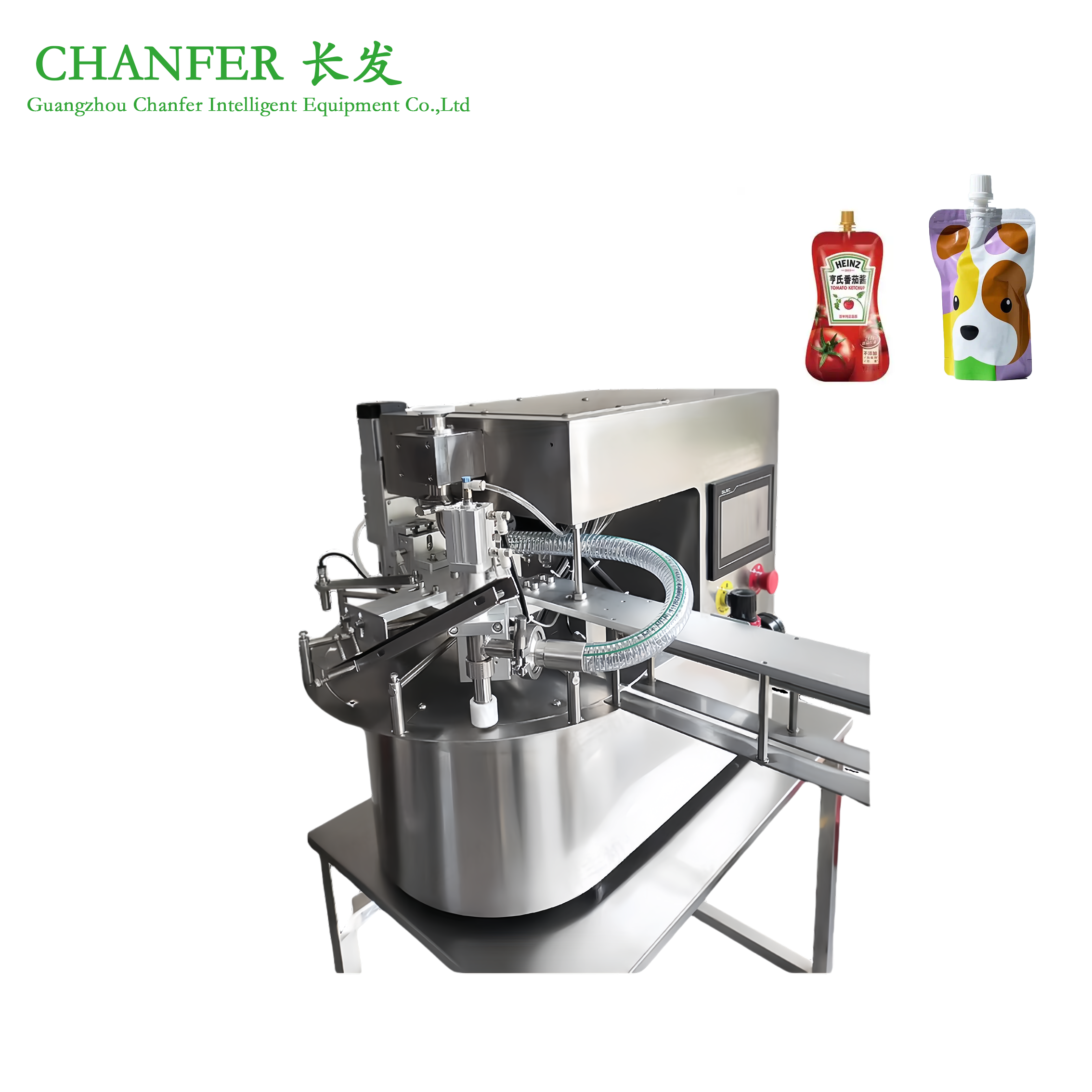

Picture of the small pouch packaging machine for reference
