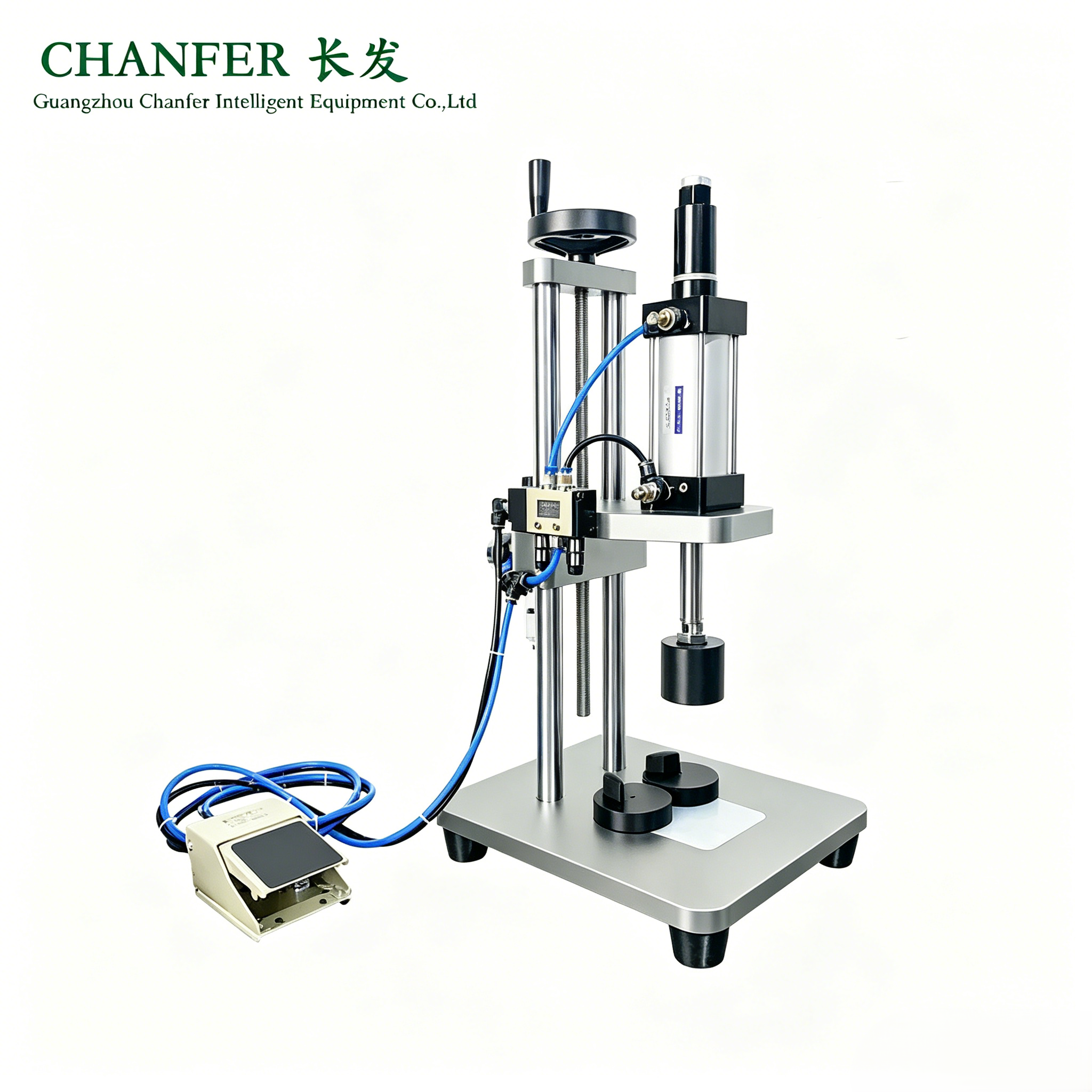

Semi automatic capping machine
This semi-automatic pneumatic capping machine is a compact, high-efficiency solution designed for sealing various bottle caps. Powered by pure pneumatic control, it eliminates the need for complex electrical setups, ensuring safe and reliable operation in production environments. Its adjustable structure accommodates a wide range of bottle heights and cap sizes, making it ideal for small-batch production lines, laboratories, and pilot manufacturing.

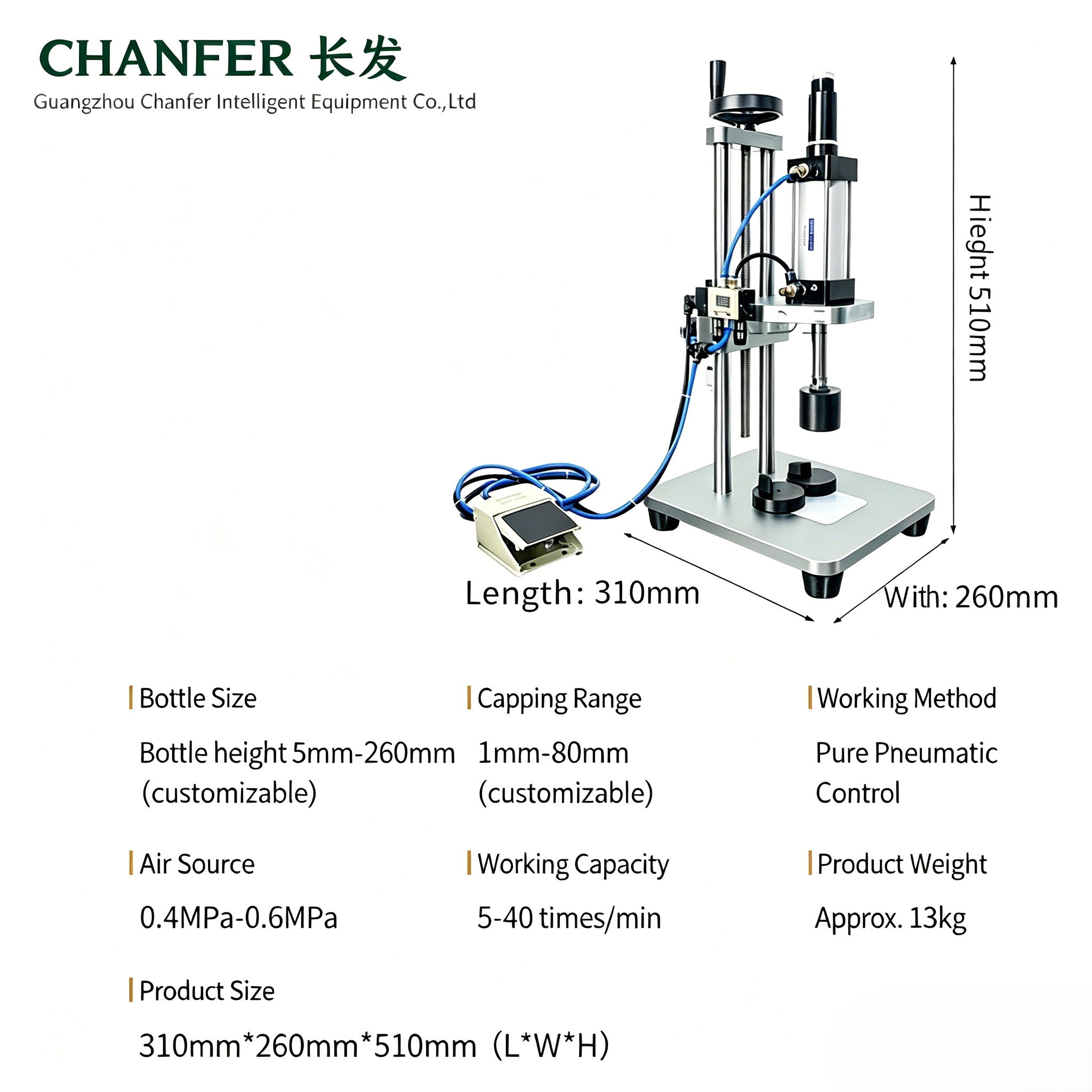

Specification:
Product Dimensions: (L × W × H) 310 mm × 260 mm × 510 mm
Applicable Bottle Height: 5 mm – 260 mm (customizable)
Capping Range: 1 mm – 80 mm (customizable)
Working Method: Pure Pneumatic Control
Air Supply Pressure: 0.4 MPa – 0.6 MPa
Working Capacity: 5 – 40 cycles per minute
Net Weight: Approx. 13 kg
